Product Introduction

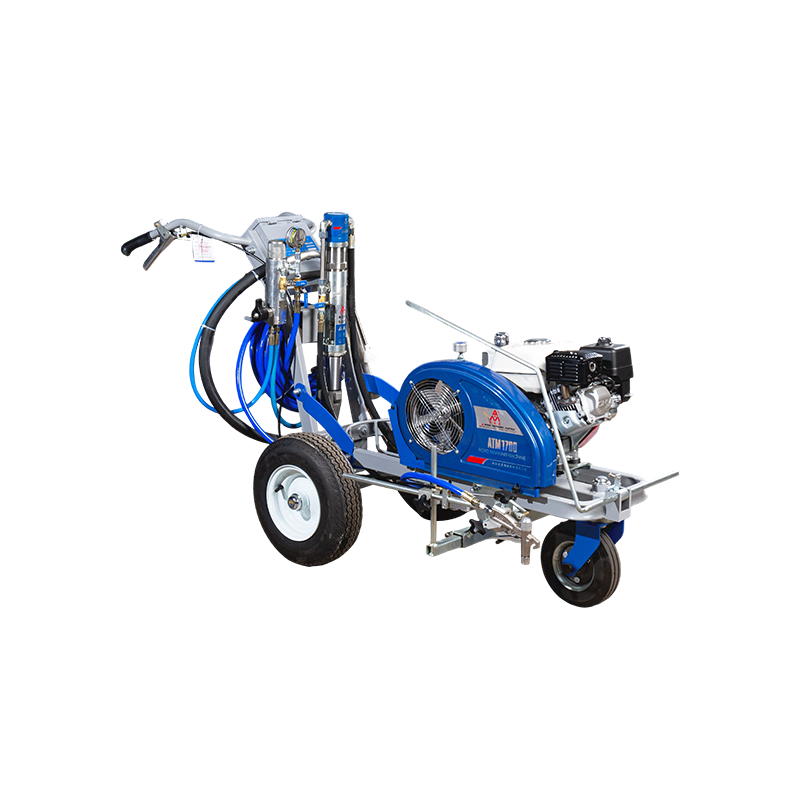

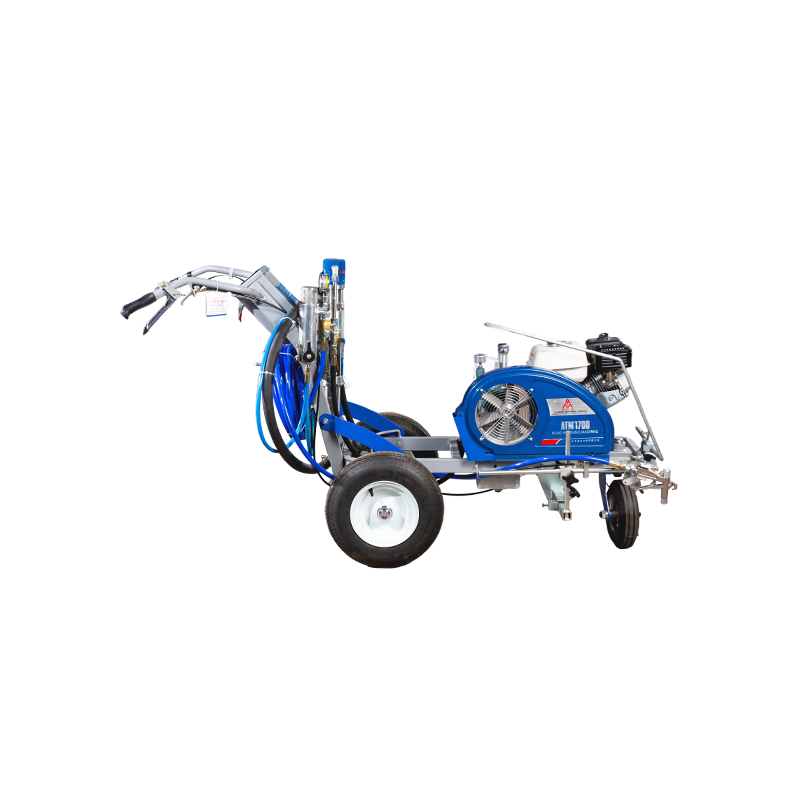

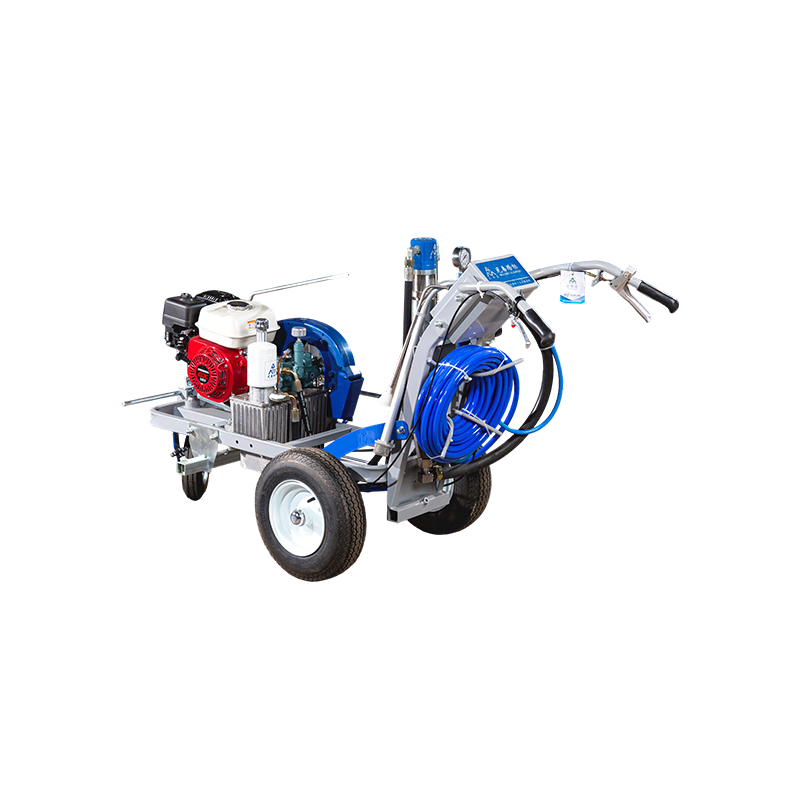

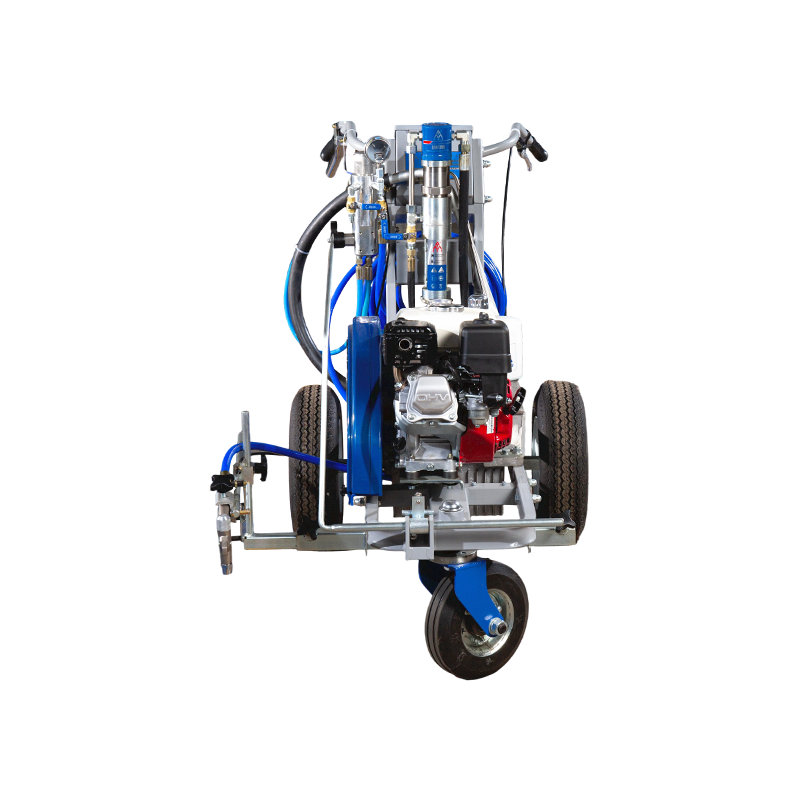

The push-type cold spray line marking machine was independently developed by the experienced mechanical design and R&D team at Brothers Road Markings. Since its launch, it has been a runaway success! With its compact design, stable pressure, high flow rate, and uniform spraying, this machine produces smooth, full-bodied lines and offers high efficiency, making it the pinnacle of cold spray line marking machines in China!
Stable pressure, full-bodied lines, and ease of use

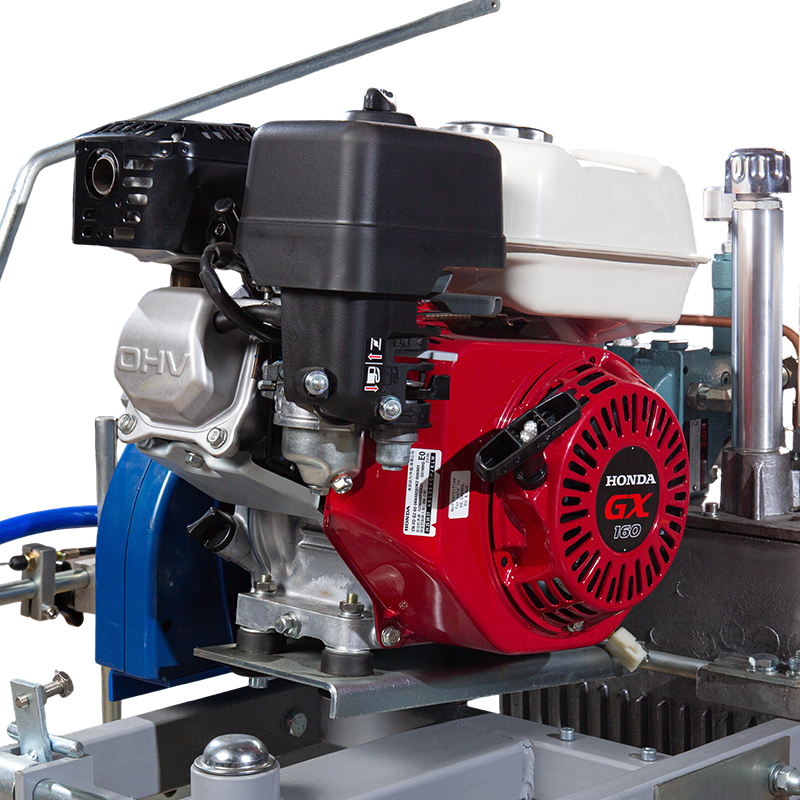

5.5HP Honda engine, operating pressure 8–16 MPa, spray flow rate 7 L/min, spray width 5–50 cm, line thickness 0.2–0.4 mm, dimensions 170 × 90 × 100 cm
Lever-operated spray gun, fitted with warning lights and an illumination system (dual-gun configuration available as an option)
Product Highlights
High-pressure filter
Front-mounted filter design on the spray gun prevents clogging and facilitates cleaning.
Linear motor
Low start-up pressure, low noise, smooth operation and long service life.
Imported key components
Imported hydraulic power unit ensures smooth operation of the equipment
Technical Specifications:
| Model |
ATM-1700 |
| Engine |
5.5 HP Honda engine |
| Operating pressure |
8–16 MPa |
| Spray flow rate |
7 L/min |
| Spray width |
5–50 cm |
| Coating thickness |
0.2–0.4 mm |
| Length × Width × Height |
170 × 90 × 100 cm |
