Product Description

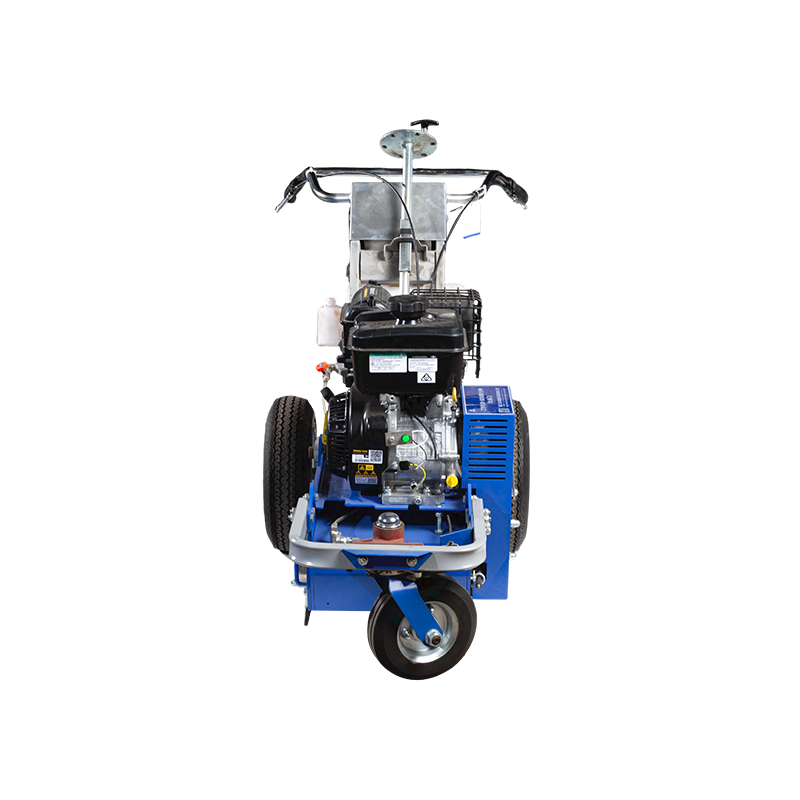

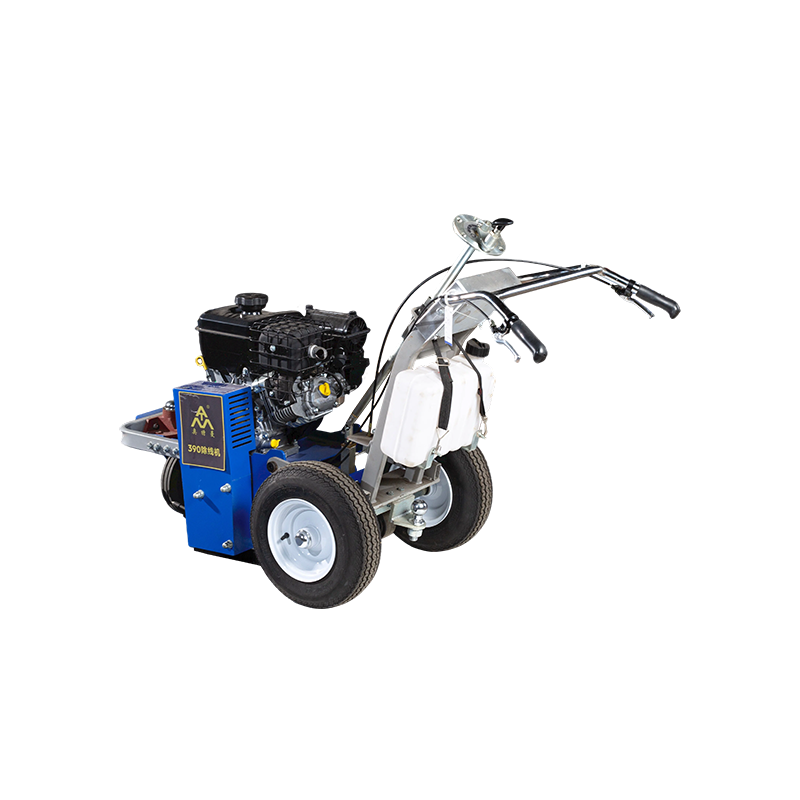

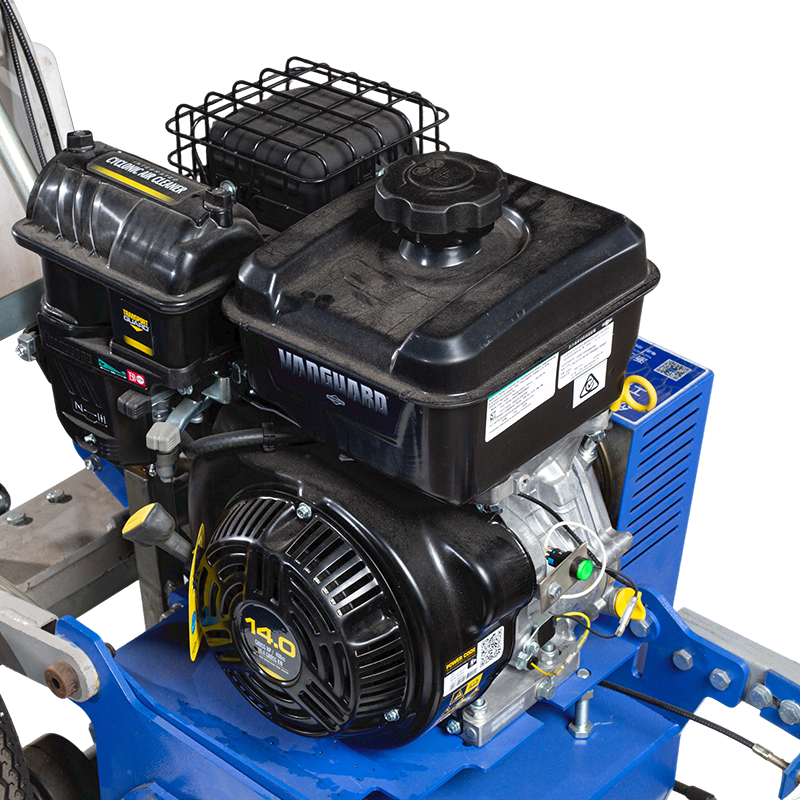

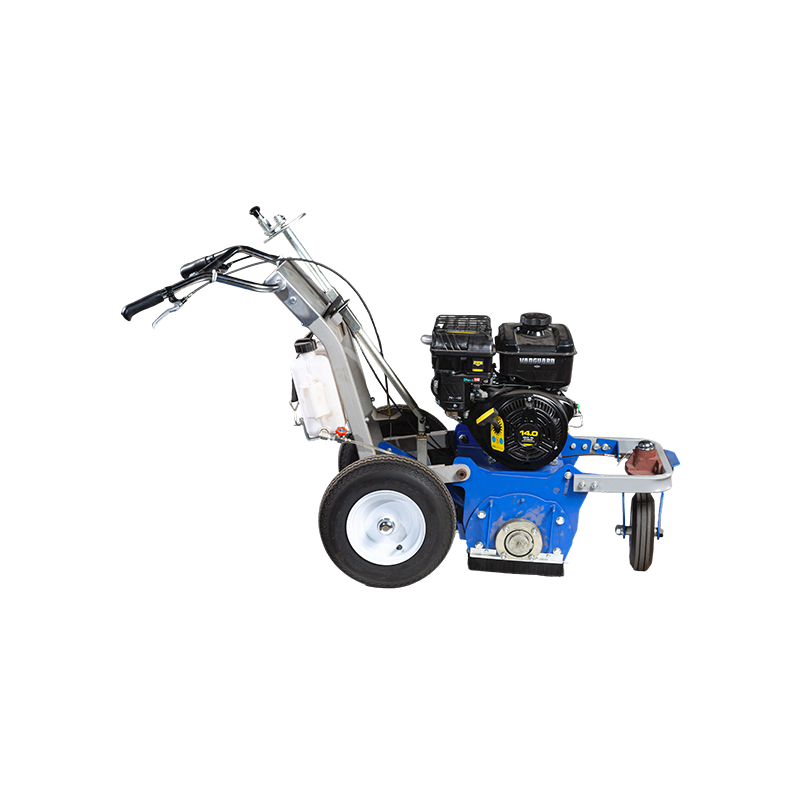

The CX340 and CX390 are new-generation road marking maintenance machines, primarily designed to remove damaged, cracked or discoloured thermoplastic markings, as well as worn-out cold-applied paint markings. Equipped with a Honda engine imported from Japan and high-quality milling blades, these machines operate efficiently and swiftly. They are characterised by simple operation, rapid grinding speeds, minimal damage to the road surface and easy maintenance.
Product Highlights
The grinding head comprises multiple sets of blades, each fitted with high-quality alloy cutting tips.
Featuring a centrifugal grinding design, the blades rotate freely on the shaft. High-speed rotation generates centrifugal force, causing the cutting tips to strike the road markings until they are completely removed.
This line removal machine is suitable not only for removing thermoplastic markings but also for removing cold paint markings.
The control lever is equipped with a grinding depth adjustment mechanism, allowing the grinding depth to be adjusted as required.
Technical Specifications:
| Model |
CX390 |
| Engine |
13 HP |
| Wire removal speed |
0.4 km/h |
| Grinding head service life |
20 km (under normal use) |
| Dimensions |
105 × 55 × 95 cm |
| Weight |
160 kg |
