Product Description

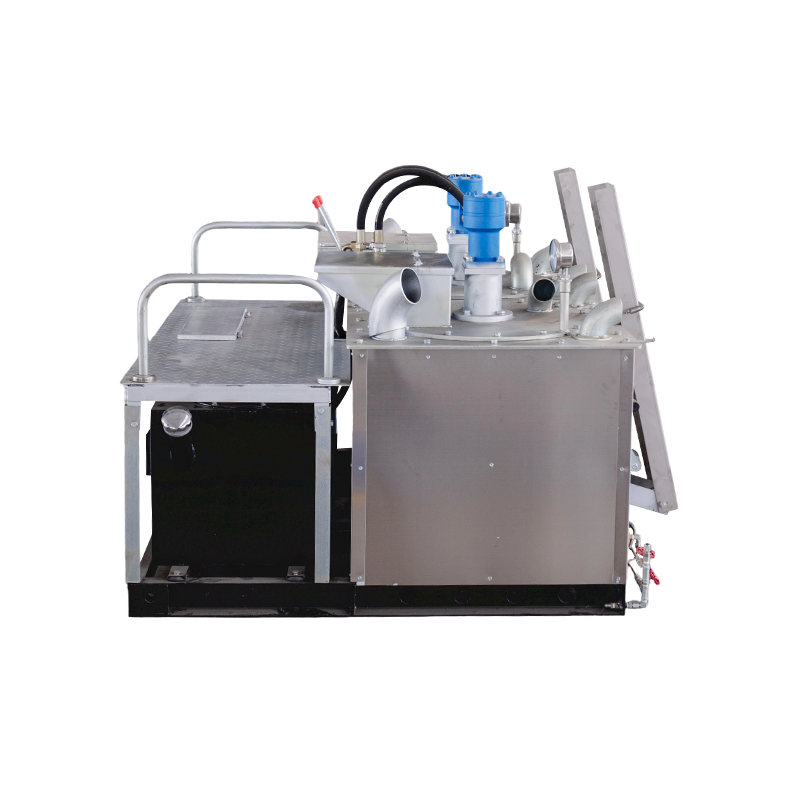

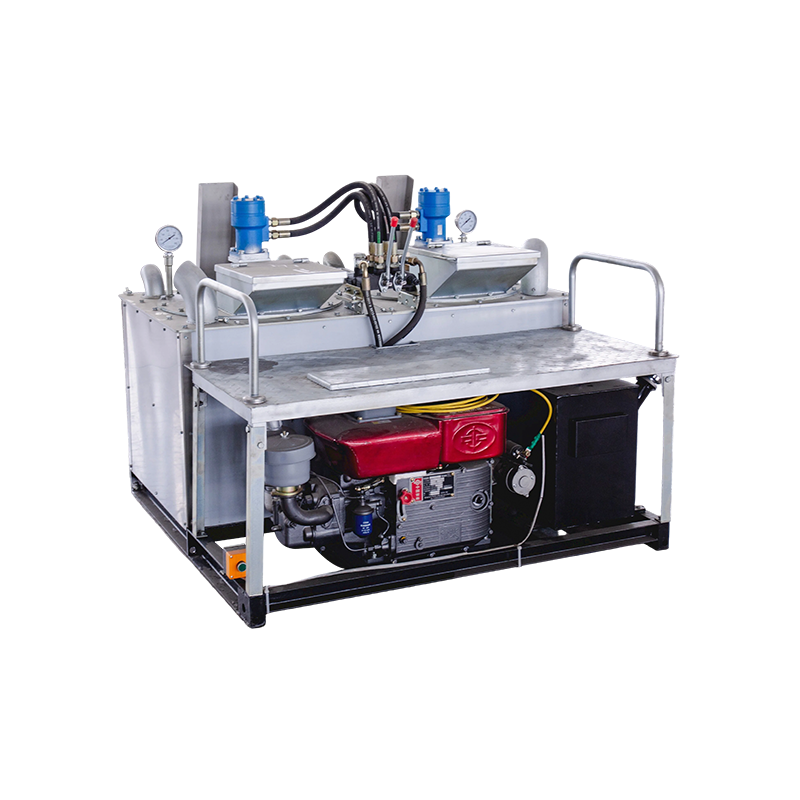

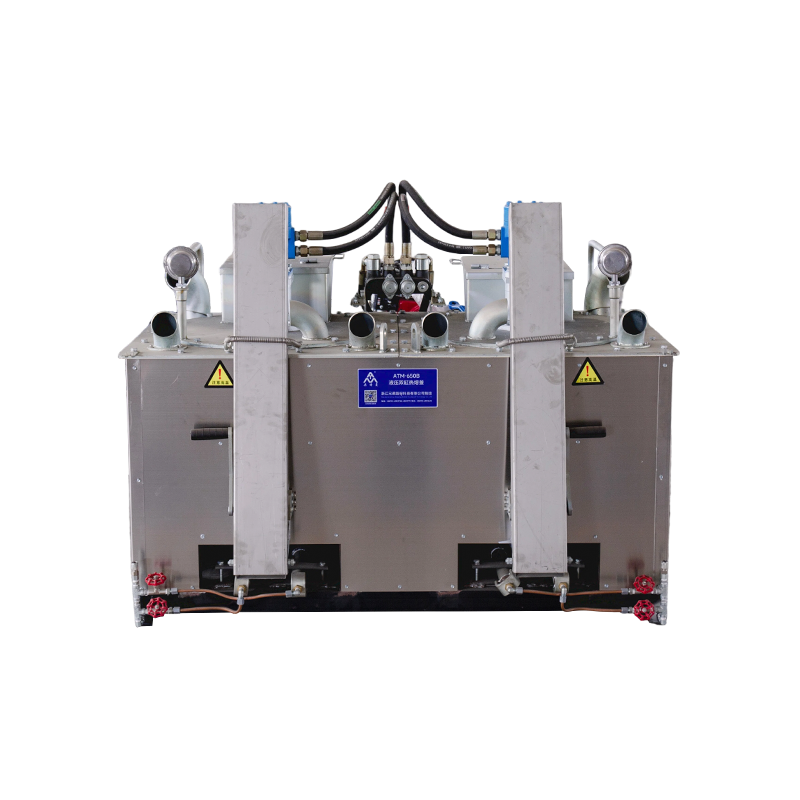

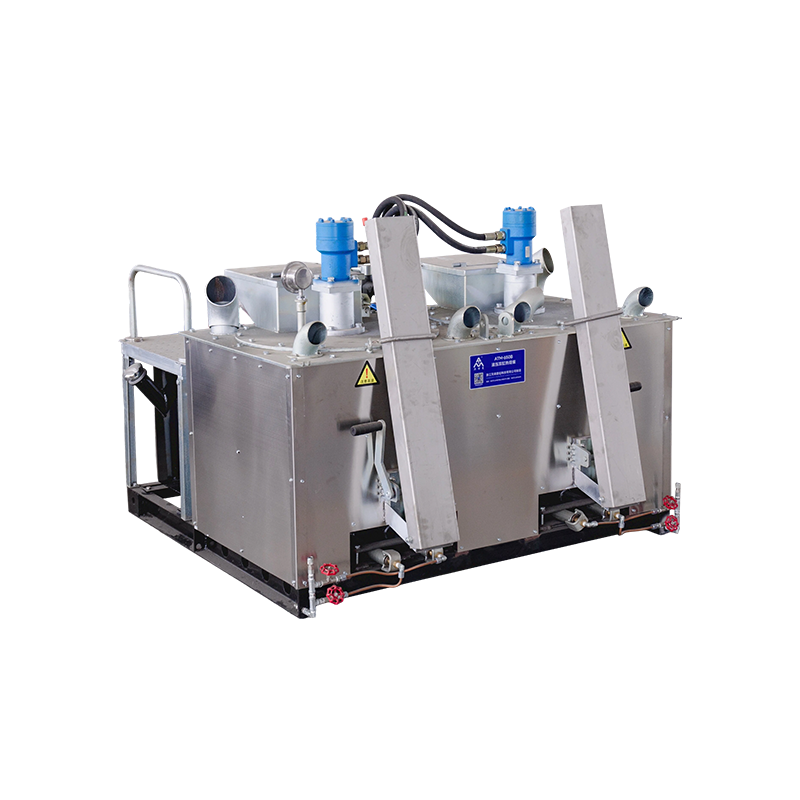

The hydraulic twin-cylinder hot-melt kettle is one of the key pieces of equipment used in hot-melt road marking applications. This unit employs a multi-channel integrated hydraulic transmission system with stepless speed variation and high torque, ensuring high-performance operation under heavy loads. It features forward and reverse stirring, and utilises a high-efficiency direct-injection burner to guarantee high combustion efficiency, saving both time and energy. It is characterised by high melting efficiency, resistance to blockages, long continuous operating times, simple operation and easy maintenance.
Product Highlights
Multi-channel hydraulic control valves, forward and reverse stirring, and stepless speed variation.
Structure: High-strength, high-temperature-resistant, and oxidation-resistant stainless steel plate construction.
Safety features: A specially designed overload relief device to prevent operational errors.
Ultra-low profile, tailor-made for construction in confined spaces, featuring a replaceable stainless steel base plate design, with optional dual-fuel capability (diesel or LPG).
Technical Specifications:
| Model |
ATM-650 |
| Drive type |
Hydraulic drive |
| Engine |
12 HP Changchai engine |
| Displacement |
325 kg × 2 |
| Heating system |
Liquefied petroleum gas |
| Dimensions |
150 × 160 × 175 cm |
| Weight |
1,000 kg |
| Boiler shell material |
Stainless steel |
