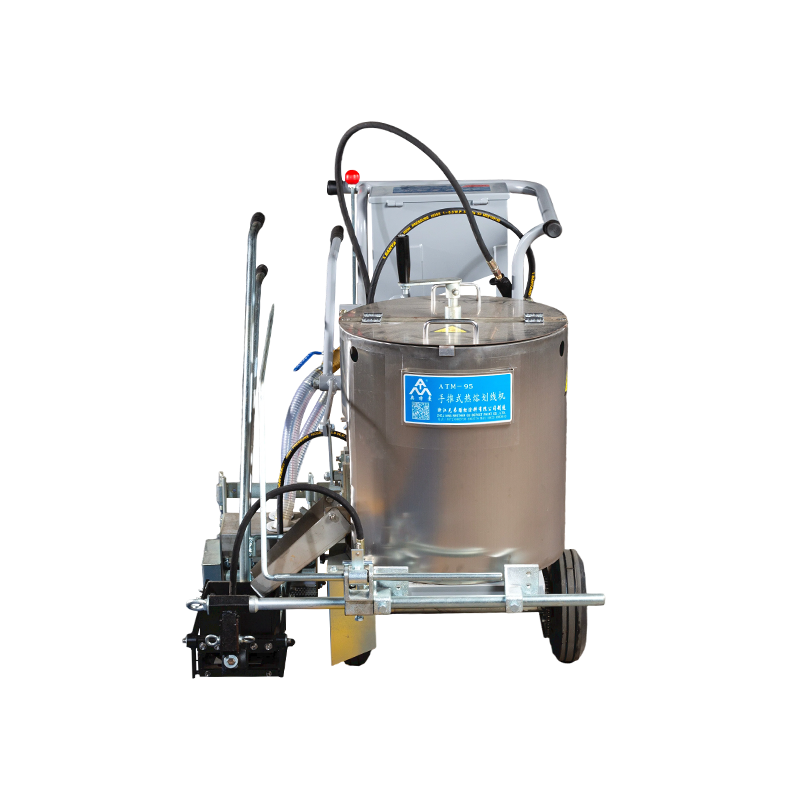

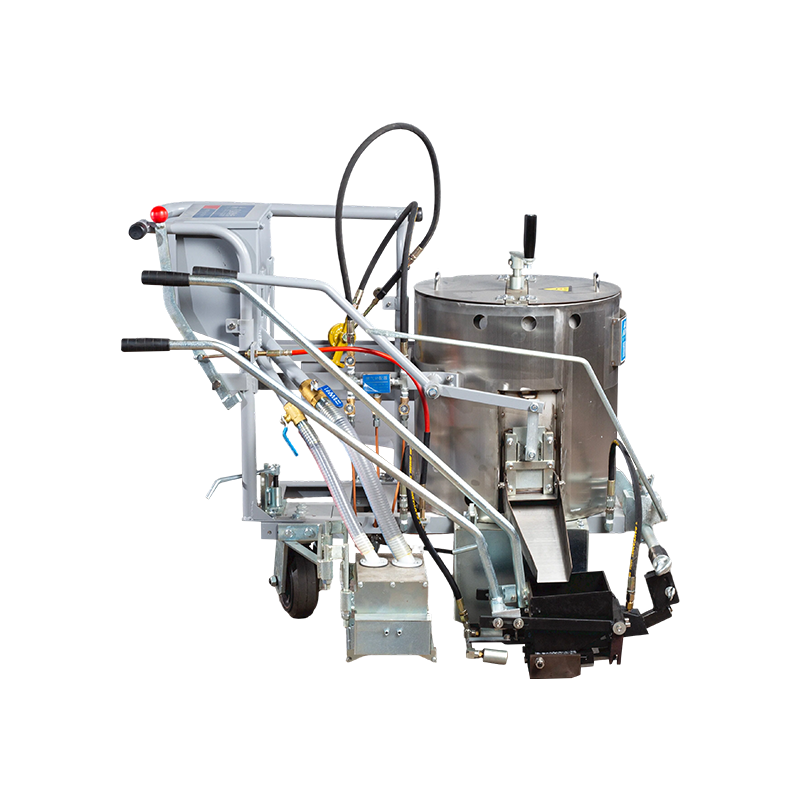

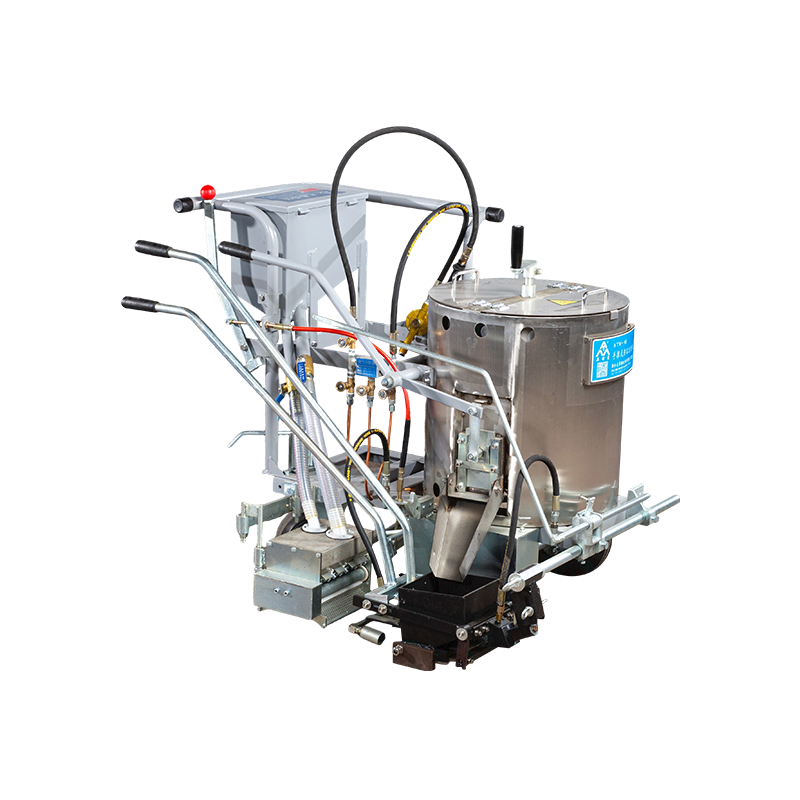

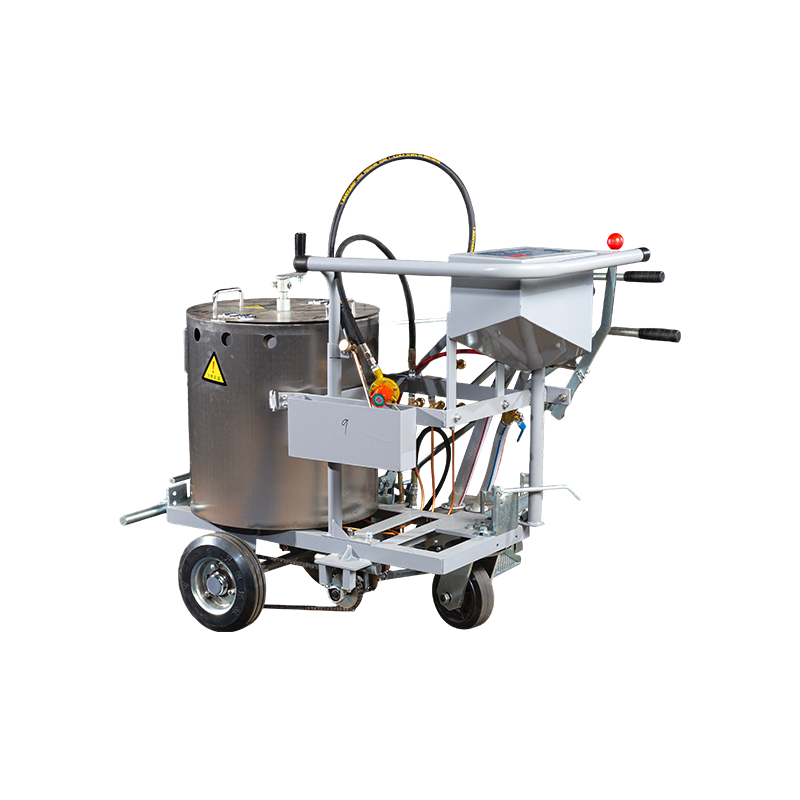

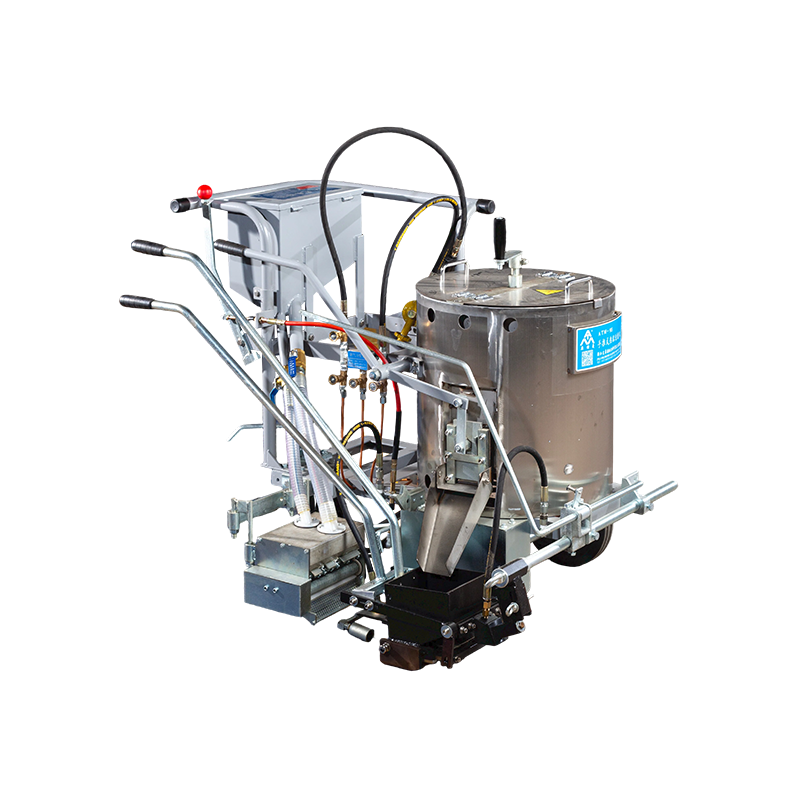

Product Description
The hand-pushed thermoplastic line marking machine is a key piece of equipment for thermoplastic road marking applications. Used in conjunction with a thermoplastic melting kettle, it ensures that the lines are straight, with aligned start and end points, uniform thickness and an aesthetically pleasing finish. The machine is lightweight, simple to operate and easy to maintain.
Product Highlights

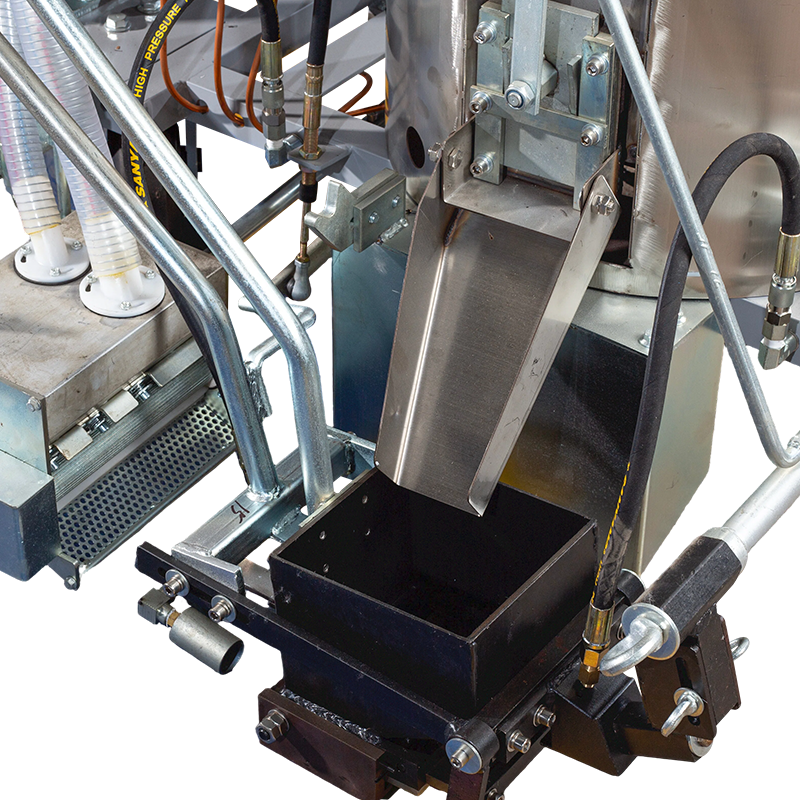

The marking hopper is machined from a special alloy with excellent thermal conductivity, ensuring it does not deform during use.
The hopper features a dual-handle design for greater ease of use.
The movable carbide ground-level cutting blade ensures neater line edges, making it particularly suitable for application on uneven, old road surfaces.
The wheels are made of special rubber, offering high heat resistance, wear resistance and good elasticity, resulting in effortless pushing and excellent stability during operation.

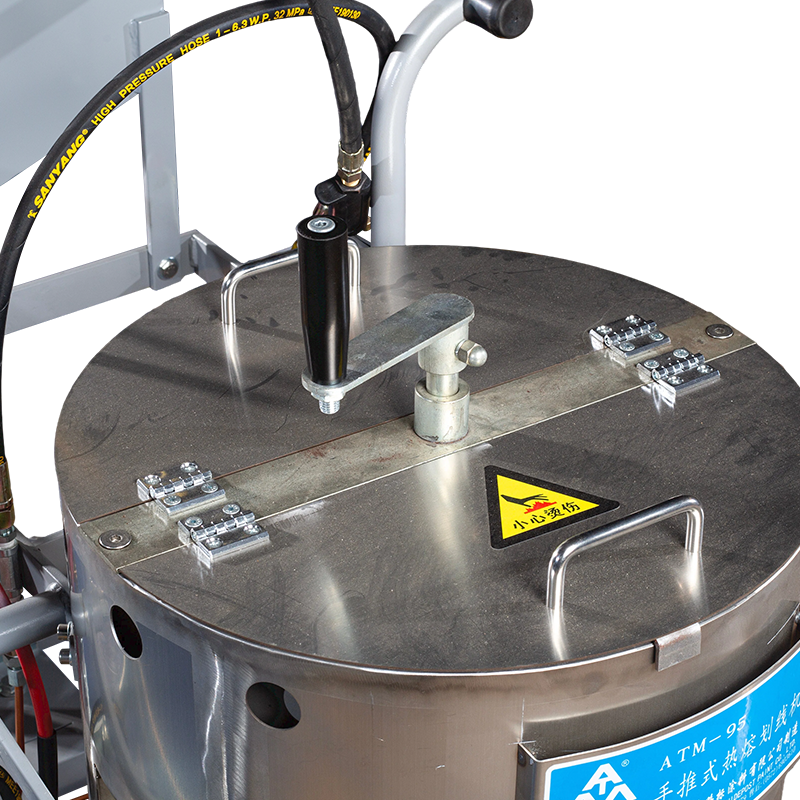

The stainless steel double-walled insulated material hopper is heat-resistant and rust-proof.
The vertical manual mixing mechanism facilitates easy mixing.
The adjustable push handle can be raised or lowered as required.
Technical Specifications:
| Model |
ATM-95 (Dual-spreader) |
| Paint bucket capacity |
95 kg |
| Microbead hopper capacity |
10 kg |
| Heating system |
Liquefied petroleum gas |
| Standard hopper |
15 cm/20 cm |
| Length × Width × Height |
110 × 85 × 95 cm |
| Total weight |
115 kg (excluding gas cylinder) |
| Line marking hopper opening/closing |
Dual handles |
| Microbead spreader |
Dual-spreader |
