Product Overview

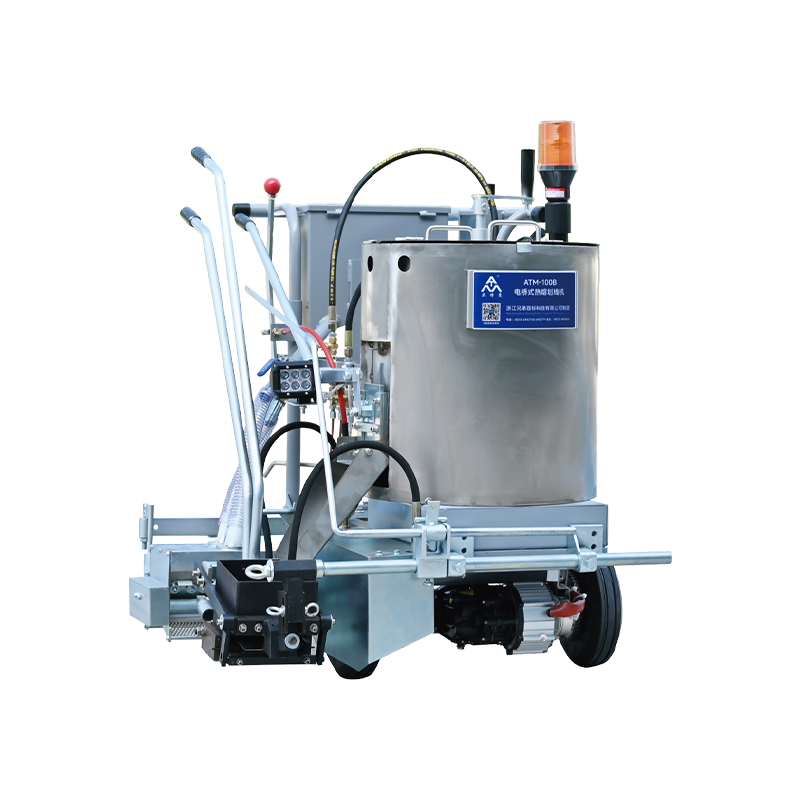

The electric hot-melt line marking machine is equipped with a high-power brushless motor system and a highly efficient continuously variable transmission system, delivering powerful performance and smooth operation, thereby reducing the physical strain on operators. Suitable for use on sloping surfaces, it significantly improves work efficiency and minimises safety risks. It is characterised by smooth operation, neat and attractive lines, reliable performance and easy maintenance.
Electric drive, smooth operation, high work efficiency, neat and attractive lines
Product Highlights
Featuring a high-power brushless motor system paired with a high-capacity battery, it can operate continuously for eight hours, delivering robust power and smooth operation. It is easy to operate and maintain, and offers high marking efficiency.
▪ Construction on sloped surfaces significantly improves efficiency and ensures safety.
▪ The wheels are made of special rubber, offering high heat resistance, wear resistance and excellent elasticity, making the machine easy to manoeuvre and ensuring good stability.
▪ The double-walled, insulated material hopper is made of stainless steel, offering high heat resistance and rust resistance.
▪ The adjustable push handle can be raised or lowered as required.
Technical Specifications:
| Model |
ATM-100 |
| Paint tank capacity |
100 kg |
| Microbead tank capacity |
10 kg |
| Power system |
High-power brushless DC motor |
| Heating system |
Liquefied petroleum gas |
| Length × Width × Height |
120 × 85 × 95 cm |
| Total weight |
120 kg (excluding gas cylinder) |
| Maximum gradient |
15° |
