Product Introduction

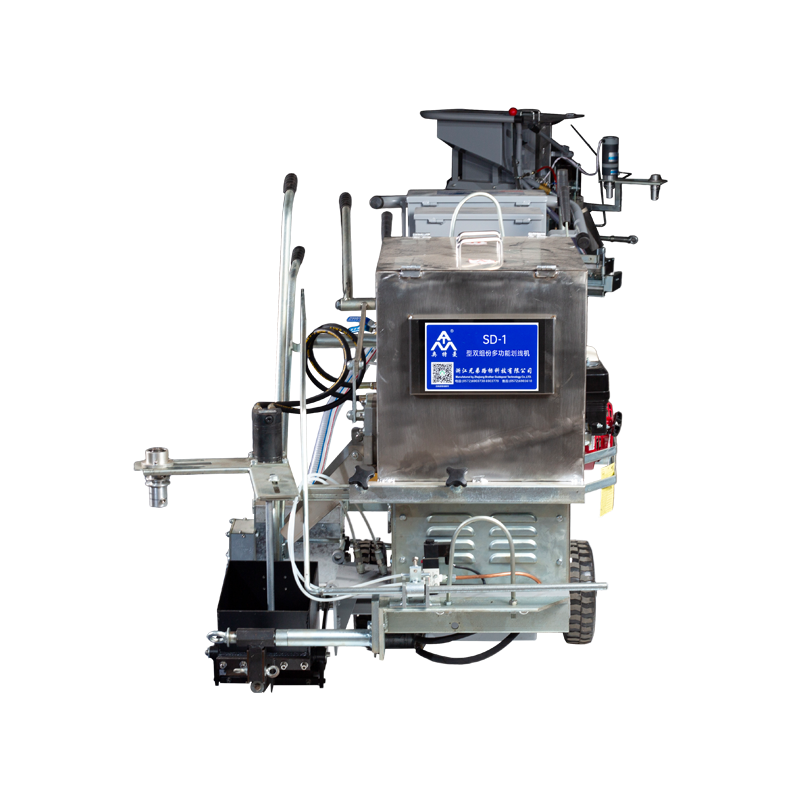

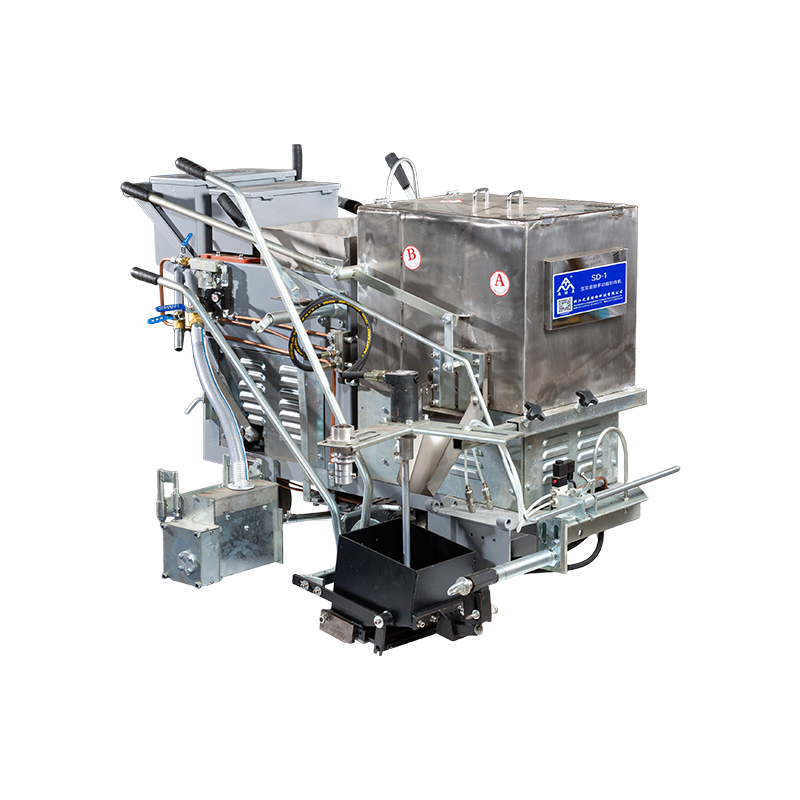

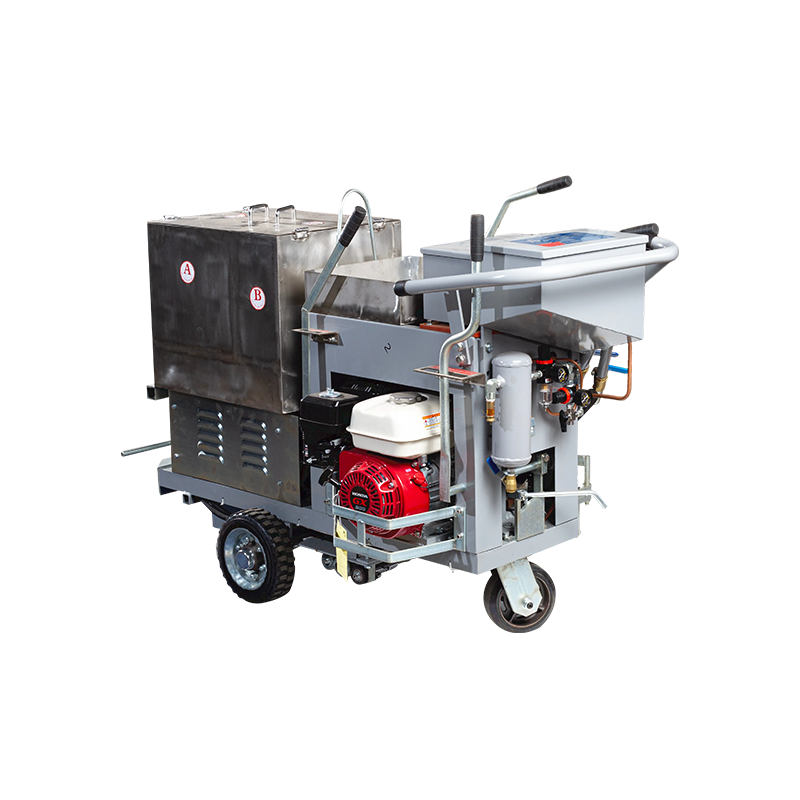

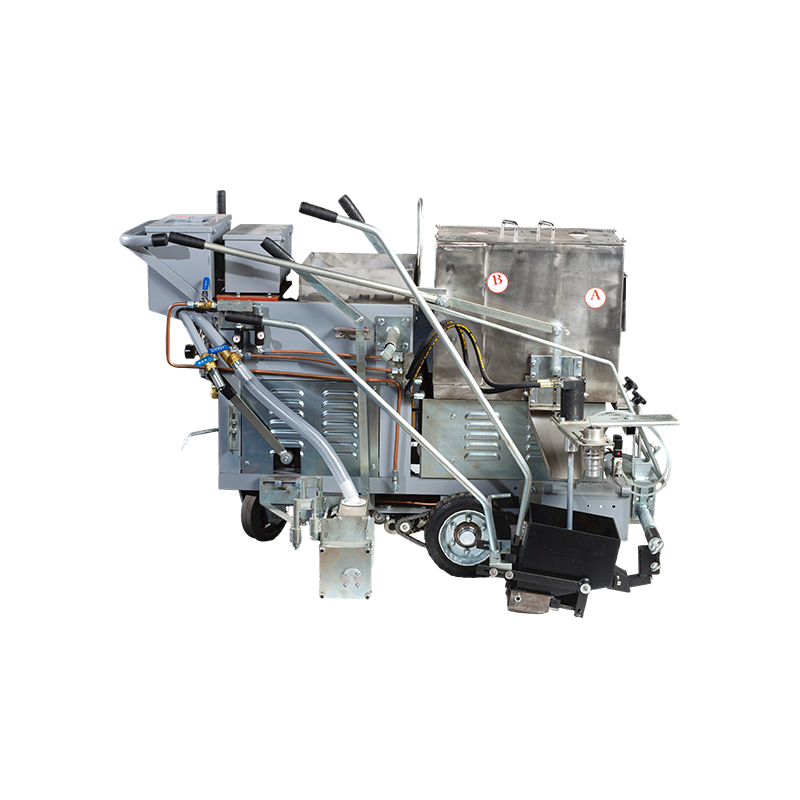

The dual-component multi-functional line marking machine is a versatile unit capable of performing multiple functions. Users can select from a range of structural, scraper-type and vibrating line marking buckets to suit their specific requirements, enabling the application of dual-component structural markings, dual-component scraper-type markings and dual-component vibrating markings (standard configuration: 15 cm and 20 cm structural line marking buckets).
Multi-functional, with a choice of scraping, flinging or vibrating application methods, and convenient operation
Product Highlights
Imported ultra-quiet hydraulic continuously variable transmission (CVT) system ensures smooth and stable operation with effortless control of forward, reverse, clutch and stop functions.
Line marking speed and line thickness can be freely adjusted as required.
Equipped with a centrifugal micro-bead spreading system for uniform distribution and excellent reflectivity.
Hoppers are designed using special materials and processes, featuring a simple structure that is easy to assemble, disassemble and clean.
Technical Specifications:
| Model |
Model SD-1 |
| Engine |
5.5 HP Honda engine |
| Drive system |
Continuously variable transmission |
| Marking speed |
1–2 km/h |
| Line width |
15 cm–45 cm |
| Glass bead application |
Centrifugal |
| Total weight |
270 kg |
| Length × Width × Height |
160 × 90 × 130 cm |
