Product Description
The two-component scraper line marking machine is specifically designed for applying two-component reflective coatings. Based on the two-component multi-function line marking machine, its power system has been redesigned to offer both manual and electric operation modes. The mixing blades are driven directly by a battery, making the machine extremely lightweight and user-friendly, and providing a more economical option for customers requiring the application of two-component reflective road markings.
Product Highlights
Line thickness adjustable from 1.0 to 2.5 mm.
Glass beads are dispensed in fixed quantities, unaffected by travel speed.

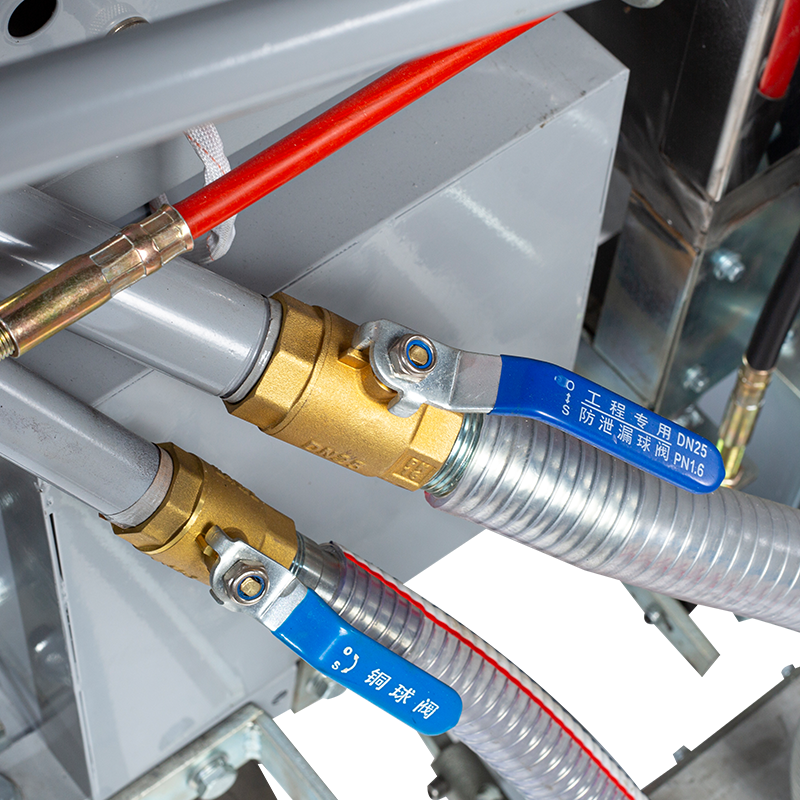

Components A and B are controlled by valves, allowing for easy adjustment according to application requirements.

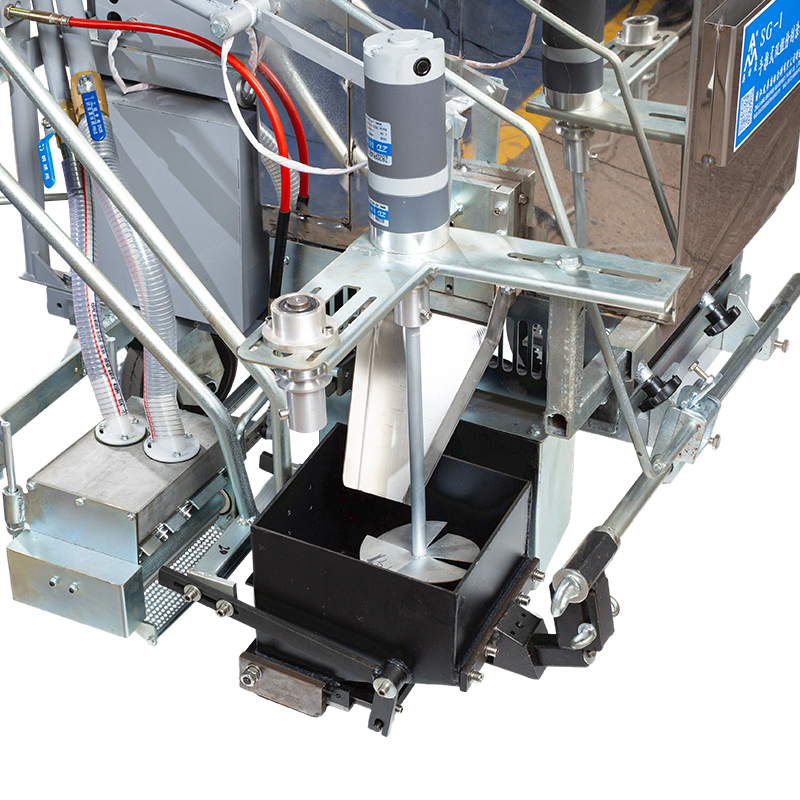

The mixing system utilises a brushless DC motor.
Technical Specifications:
| Model |
Model SG-1 |
| Operating mode |
Hand-pushed |
| Hopper capacity |
100 kg |
| Glass bead hopper capacity |
15 kg |
| Marking device |
Scraper hopper |
| Optional hopper |
15 cm–45 cm |
| Length × Width × Height |
130 × 90 × 120 cm |
| Weight |
150 kg |
